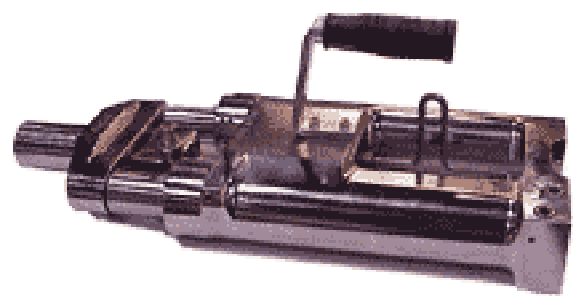

GS5A / GS6A Jack Specifications



½” Jack

.6” Jack
Piston Diameter 2" 2.25"
Ram area 6.28" 7.95"

Gage pressure for 47 kips

N/A

5,910#

Gage pressure for 33 kips

5,254#

4,150#

Cross Sectional Area

6.28

7.95

Stroke

8.5”

8.5”

Shipping Weight

39 lbs.

54 lbs.

Length

18 ¼”

18 ¼”

Width

7 ½”

8 ½”

Height

2 ¾”

3 1/8”

Power Seater Piston area

.67”

.89”
